Assume the following latencies (# of cycles between instructions)
- FP ALU Op to Store double (2)
- Load double to FP ALU Op (1)
- Load double to Store double (0)
- FP ALU Op to another FP ALU Op (3)
- ALU to ALU (1)

Example 1#

for (i=1000; i>0; i--) {
   x[i] = x[i] + s; // s is stored in F2
}

LOOP:                 ; 9 cycles per interation
   L.D   F0, 0 (R1)   ; 1 cycle delay inserted below this instruction
   ADD.D F4, F0, F2   ; 2 cycle delay inserted below this instruction
   S.D   F4, 0 (R1)
   DADDI R1, R1, -8   ; 1 cycle delay inserted below this instruction
   BNE   R1, R2, LOOP

Loop Unrolling#

LOOP:               ; 15 cycles over two iterations
   L.D   F0, 0 (R1) ; first iteration here
   ADD.D F4, F0, F2
   S.D   F4, 0 (R1)

   L.D   F0, -8 (R1) ; second interation here
   ADD.D F4, F0, F2
   S.D   F4, -8 (R1)
   DADDI R1, R1, -16
   BNE   R1, R2, LOOP

This optimization is called loop unrolling: generate code with multiple copies of the loop

Code Scheduling#

LOOP:               ; 8 cycles over two iterations
   L.D   F0, 0 (R1)
   L.D   F10, -8 (R1)
   ADD.D F4, F0, F2
   ADD.D F12, F10, F2
   DADDI R1, R1, -16
   S.D   F4, 16 (R1)
   S.D   F12, 8 (R1)
   BNE   R1, R2, LOOP

This is called code scheduling: Reorder instructions to eliminate stalls. A limitation is the number of registers

Example 2: Software Pipelining#

Running instructions for different iterations of the original loop in one iteration of the optimized loop

for (i=1000; i>0; i++) {
   x[i] = x[i] + s; // s is stored in F2
}

LOOP:                 ; 9 cycles per interation
   L.D   F0, 0 (R1)   ; 1 cycle delay inserted below this instruction
   ADD.D F4, F0, F2   ; 2 cycle delay inserted below this instruction
   S.D   F4, 0 (R1)
   DADDI R1, R1, 8    ; 1 cycle delay inserted below this instruction
   BNE   R1, R2, LOOP

Load - Add - Store

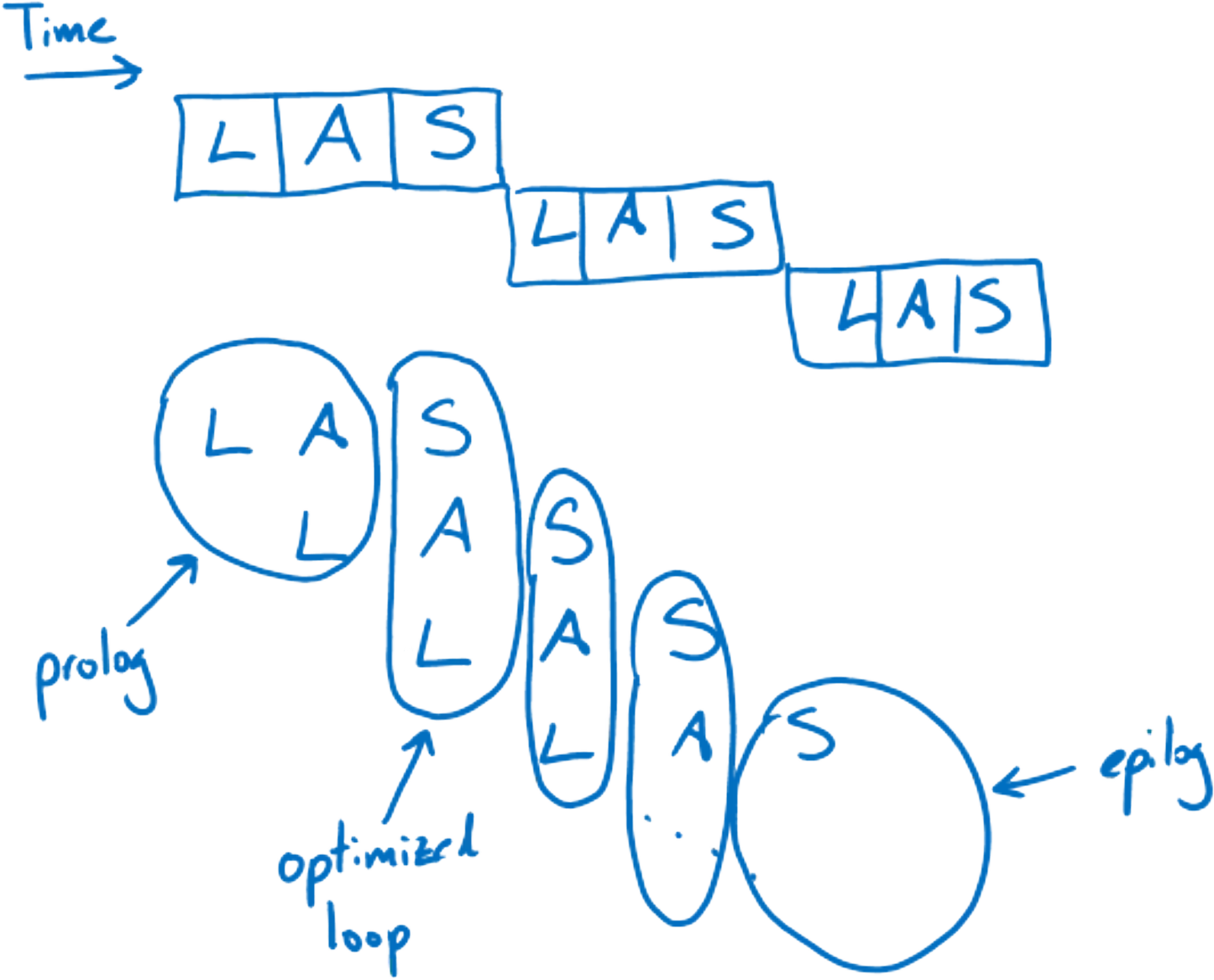

Each time you run the loop, you run a SAL. In the very beginning, you need to do the first Load and add. This technique is called software pipelining.

PROLOG:
   L.D   F0, 0 (R1)
   ADD.D F4, F0, F2
   L.D   F0, 8 (R1)
   DADDI R1, R1, 16
LOOP:
   S.D   F4, -16 (R1)
   ADD.D F4, F0, F2
   L.D   F0, 0 (R1)
   DADDI R1, R1, 8
   BNE   R1, R2, LOOP
EPILOG:
   S.D   F4, -16 (R1)
   ADD.D F4, F0, F2
   S.D.  F4, -8 (R1)
